Carbon road wheelsets
SCOM & VOSO
Compare rim depths and spoke construction across four wheelsets selected by DEER.
SCOM ULTRA 2026Specifications below apply to SCOM ULTRA
ULTRA
Carbon-spoke wheelsets
SCOM 2026 road collection
40, 50 and 62 mm rim depthsULTRA
Carbon spokes. Three rim depths.
SCOM ULTRA combines 3.2 mm carbon spokes with hooked carbon rims and a 36-tooth floating ratchet hub.
Choose a 40, 50 or 62 mm rim depth. Each standard version has a 24 mm internal width and a 30 mm external width.
The 2026 range uses Toray T800/T1000 carbon with SCOM mesh fabric. View the full dimensions, weights and hub specifications.
The TRiPEAK edition has separate options; confirm its specifications and quote with DEER.

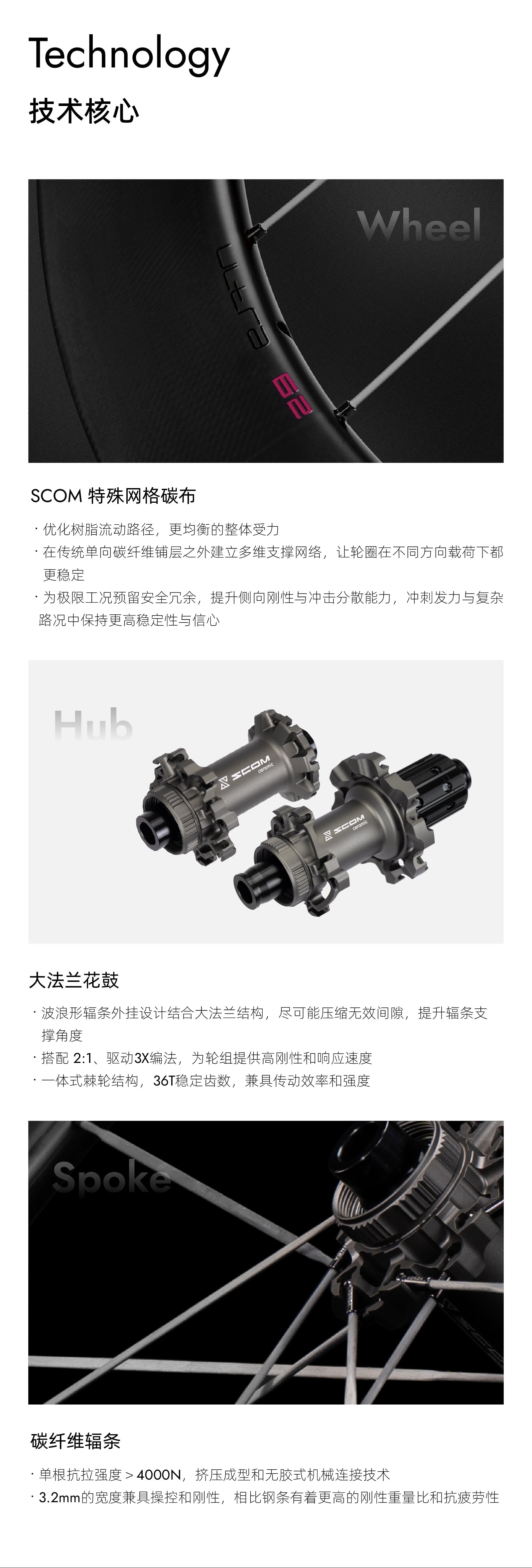

ULTRA construction
Rims, hubs and spokes
SCOM mesh carbon fabric
- Toray T800/T1000 carbon with SCOM mesh fabric.
- The mesh layer supplements the unidirectional carbon layup. SCOM describes it as support for loads in multiple directions.
Large-flange hubs
- Large flanges with an externally mounted, wave-shaped spoke arrangement.
- A 36-tooth floating ratchet in the rear hub; 2:1 lacing, with three-cross lacing at the rear.
3.2 mm carbon spokes
- 3.2 mm carbon spokes with mechanically joined, adhesive-free connections.
- SCOM ULTRA uses 21 spokes at the front and 24 at the rear.

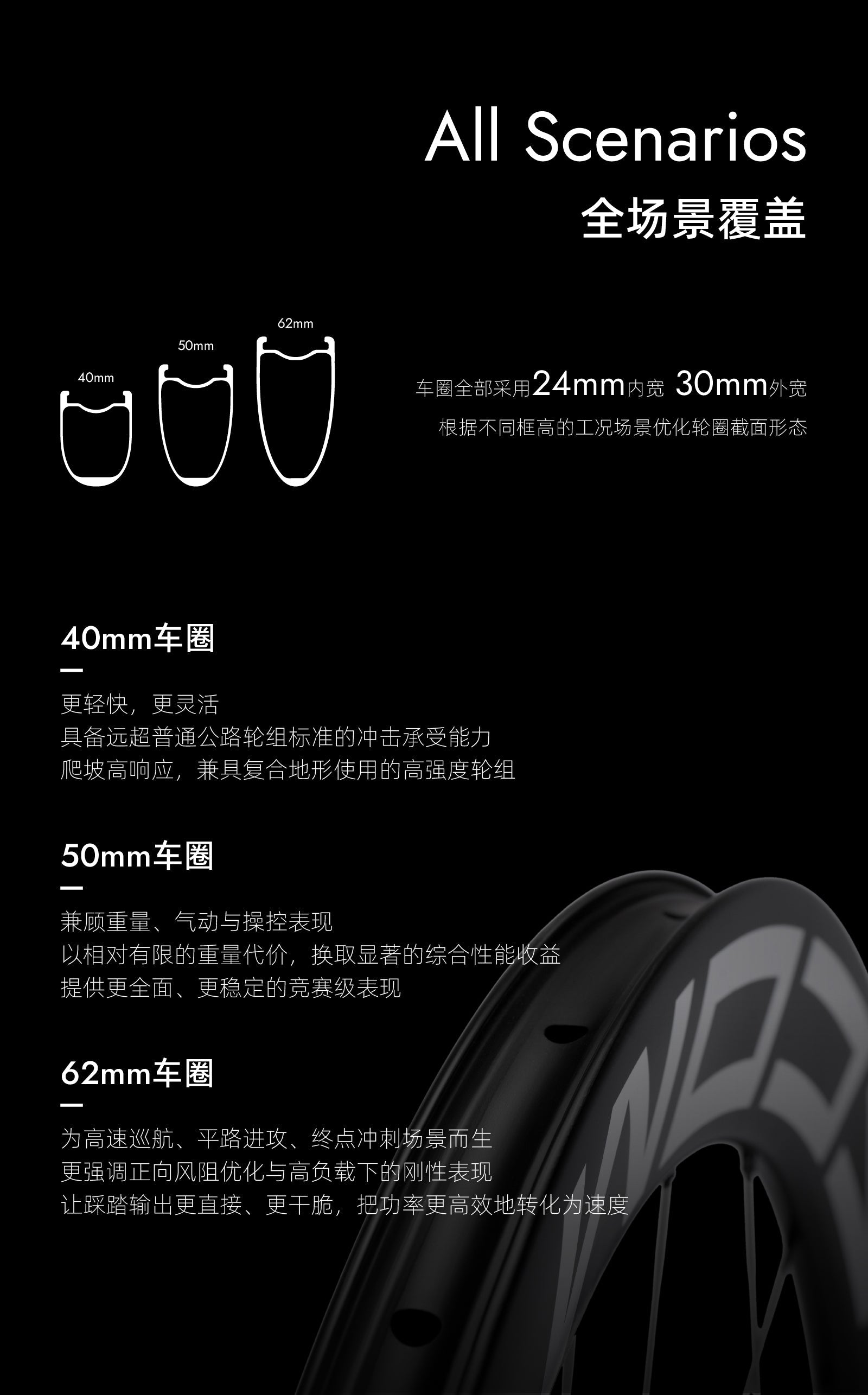

Choose your rim depth
SCOM ULTRA 40 / 50 / 62
SCOM ULTRA: 24 mm internal
30 mm external rim width
Across the 40, 50 and 62 mm versions
40 mm: climbing
SCOM positions ULTRA 40 for climbs and varied terrain.
Listed wheelset weight: 1,320 g (±2%).
50 mm: all-round riding
ULTRA 50 balances weight, aerodynamics and handling in SCOM’s range.
Listed wheelset weight: 1,385 g (±2%).
62 mm: fast roads
SCOM positions ULTRA 62 for fast cruising, flat-road attacks and sprints.
Listed wheelset weight: 1,500 g (±2%).

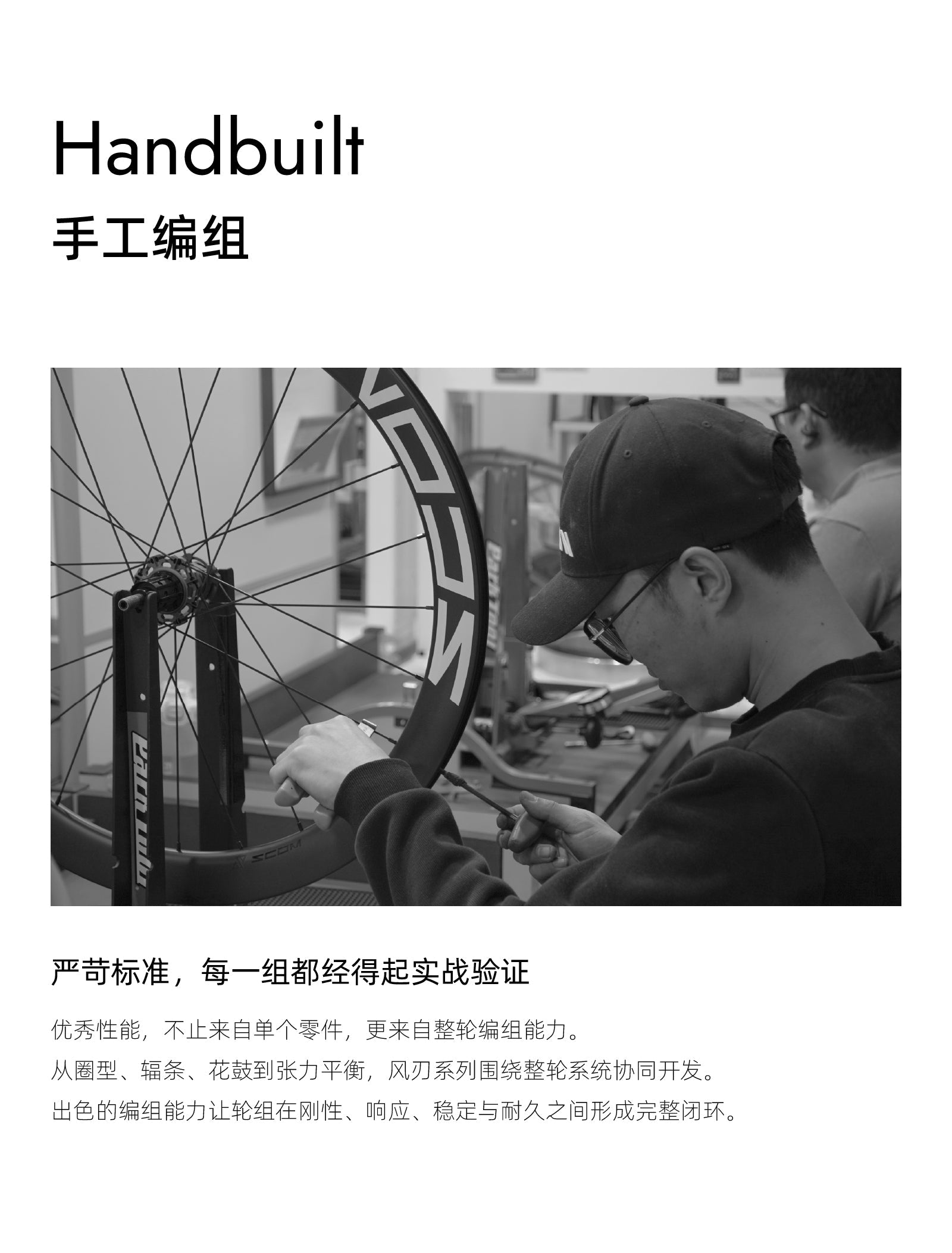

Handbuilt ULTRA wheels
Rim, hub and spoke assembly
SCOM develops the rims, spokes and hubs as one wheel system. Each ULTRA wheelset is handbuilt.

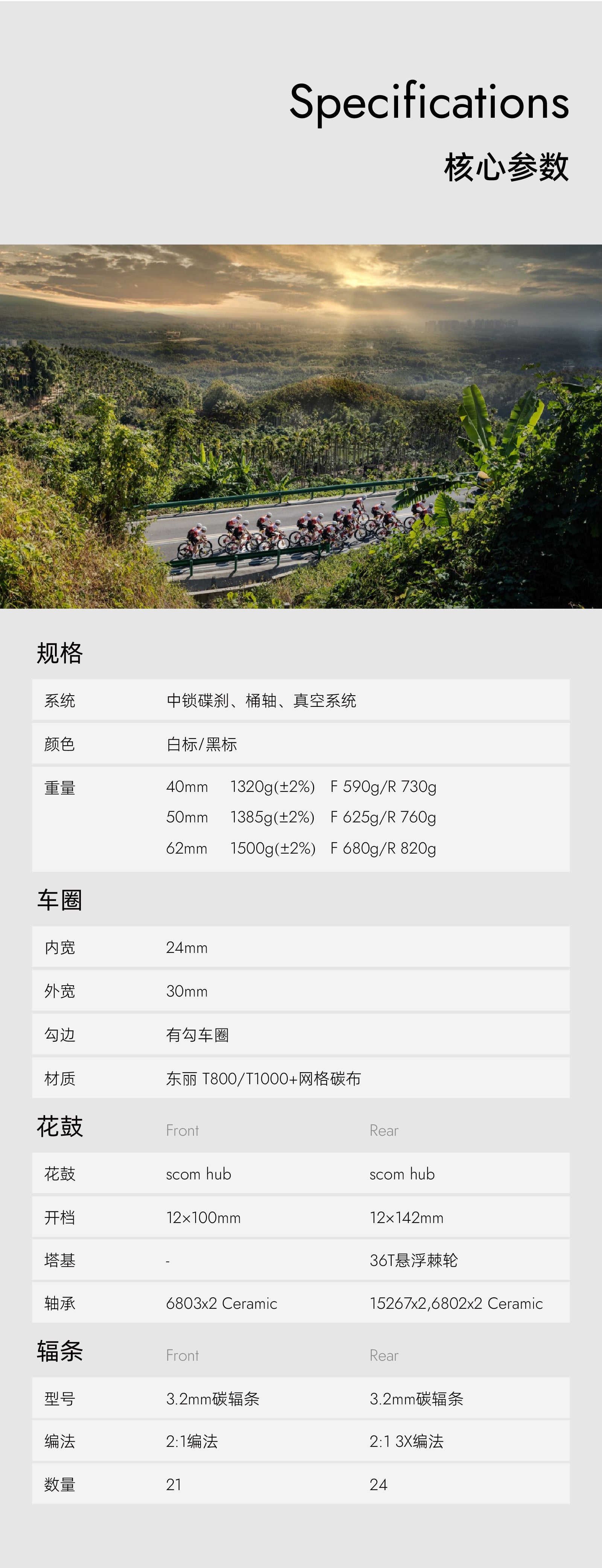

ULTRA specifications
2026 standard series
| Wheelset | ||
|---|---|---|
| System | Center Lock disc, thru-axle, tubeless system | |
| Graphics | White / black logos | |
| Weight | 40 mm1,320 g (±2%); F 590 g / R 730 g | |
| 50 mm1,385 g (±2%); F 625 g / R 760 g | ||
| 62 mm1,500 g (±2%); F 680 g / R 820 g | ||
| Rims | ||
| Internal width | 24 mm | |
| External width | 30 mm | |
| Bead profile | Hooked rims | |
| Material | Toray T800/T1000 + mesh carbon fabric | |
| Hubs | Front | Rear |
| Hubs | SCOM hub | SCOM hub |
| Axle spacing | 12 × 100 mm | 12 × 142 mm |
| Rear engagement | — | 36-tooth floating ratchet |
| Bearings | 2 × 6803 ceramic | 2 × 15267, 2 × 6802 ceramic |
| Spokes | Front | Rear |
| Type | 3.2 mm carbon spokes | 3.2 mm carbon spokes |
| Lacing | 2:1 | 2:1, three-cross |
| Count | 21 | 24 |
Source: SCOM 2026 ULTRA specification sheet. Weights are per wheelset, with a ±2% tolerance; F = front, R = rear. The sheet does not specify which accessories are included in the quoted weights. These figures apply to the standard ULTRA series; confirm TRiPEAK edition details separately.
SCOM on the road
2026 racing campaign
Road racing photography
from SCOM’s 2026 campaign.
SCOM’s campaign presents its wheelsets in professional road racing.
See the SCOM ULTRA product details for the listed options, or ask DEER about your bike and riding plans.
Before you choose
Fit and setup
Will these wheelsets fit my bike?
The supplied sheets for these four models list Center Lock disc mounts and 12 × 100 mm front / 12 × 142 mm rear thru-axles. Confirm the freehub body, cassette, tire size and pressure limits for your chosen model before ordering.
Are all four models ready for tubeless tires?
SCOM ULTRA and AEROLITE list tubeless systems. VOSO LITE has tubeless-compatible rims but is supplied with clincher rim tape; confirm the tape, valves and setup required. The supplied VOSO ULTIMATE sheet does not confirm tubeless compatibility.
Manufacturer information: SCOM ULTRA 2026, SCOM AEROLITE 2026, VOSO LITE and VOSO ULTIMATE, current generation. English translations of manufacturer specification sheets. Reviewed .
Ask DEER about a wheelset
Include the model and rim depth, your bike and cassette, quantity and delivery country in your inquiry. Confirm price, availability, compatibility and shipping with your quote.
Request a wheelset quote
